Evercam Open Source Construction Timelapse

#1

The team at Evercam have been experimenting with THETA Plug-in technology and have started an open source project to to help everyone get started with using 360 images in construction workflows.

You can take this base and modify it for your own purposes.

If you’re interested in timelapse and project management cameras for construction, you should check out the Evercam site.

They will be submitting this plug-in to the store. If you’re not a developer, you can still benefit from this open source plug-in in the near future.

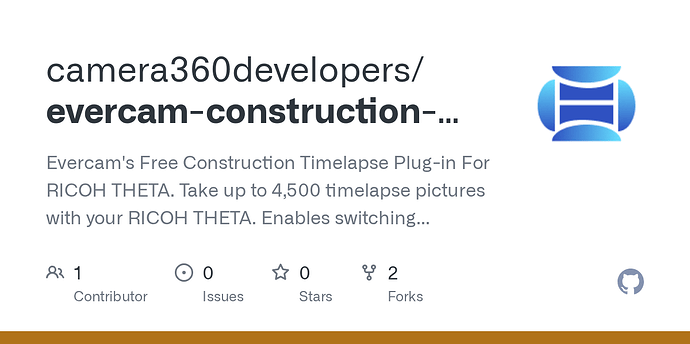

Evercam’s Free Construction Timelapse Plug-in For RICOH THETA

Evercam Free Plug-in

Open source community project from the team at Evercam

Take up to 4,500 timelapse pictures with your RICOH THETA. Enables switching between timelapse and single still image mode without the use of a mobile phone.

Features

  • 60 second delay between pictures
  • disables automatic off and sleep during use

Benefits

  • Does not require mobile phone
  • Can switch back to single shot mode by pressing the lower mode button to take camera out of plug-in mode
  • Open source. You can use as a base for your customized construction workflow

Usage

  • connect camera with USB cable to power source over 2 amps
  • put into plug-in mode
  • press shutter button once
  • press shutter button again to stop the timelapse. You can restart
    the timelapse by pressing the shutter button again
  • press the lower mode button for more than 2 seconds to stop the plug-in

Tips

  • if you want to take thousands of pictures, delete all other media
    from your camera prior to use
  • if you want to adjust the shutter volume, use the RICOH THETA mobile app
  • Wi-Fi LED blinks yellow when plug-in is in use. Speeds up at 30 and 15 seconds
    prior to shot
  • Short audio beep at each interval. Cannot turn off the audio beep right now,
    but if you need a silent mode, please put a comment on community.theta360.guide
    and I’ll add it in.
  • when pressing the shutter botton to stop picture taking, the yellow Wi-Fi will go away, but one more picture is taken
  • currently, the faster blinking yellow Wi-Fi continues after the last picture

Motivation for Building

Although the RICOH THETA mobile app is great. Some people do not like to use it onsite as they are trying to streamline a workflow. Some phones may have problems with connection to the mobile app. There’s also times, when environmental factors such as heavy rain make it inconvenient to use the mobile phone. You can seal the RICOH THETA V in a TW-1 case, but your mobile phone may be exposed.

With a plug-in workflow, the user can also take single pictures of sites before the plug-in is activated.

By training your staff to put the camera into timelapse mode by pressing the lower mode button of the camera, it saves new or infrequent staff the hassle of downloading the mobile app and getting it to work with the camera. In this scenario, you can just give the camera and USB power adapter to a staff member on site at a construction area with simpler instructions - “press lower button” and confirm LED is “Yellow”. You can even put an arrow sticker on the camera to indicate which button to press.

As this plug-in will be open source, it can be a base framework for custom workflow modifications. In the future, people can change the delay and number of pictures in the code and have different plug-ins for different workflows.


Update: June 10, 2019

Now in store.

https://pluginstore.theta360.com/plugins/io.evercam.constructiontimelapse/
