THETA Magic Filters by EdOliver, Victor Altamirano

This article was written by EdOliver adn Victor Altamirano

Will be in plug-in store soon.

See sample image 360 view

Uses OpenCv to process images and generates interesting filters for the camera in order to experiment later with haarcascades.

Filters:

  • Image Equalization (color).
  • Binarization of image or Threshold (Red, Green and Blue).
  • Grayscale.
  • Blur.
  • Erosion-Dilatation.
  • Negative

How it Works:

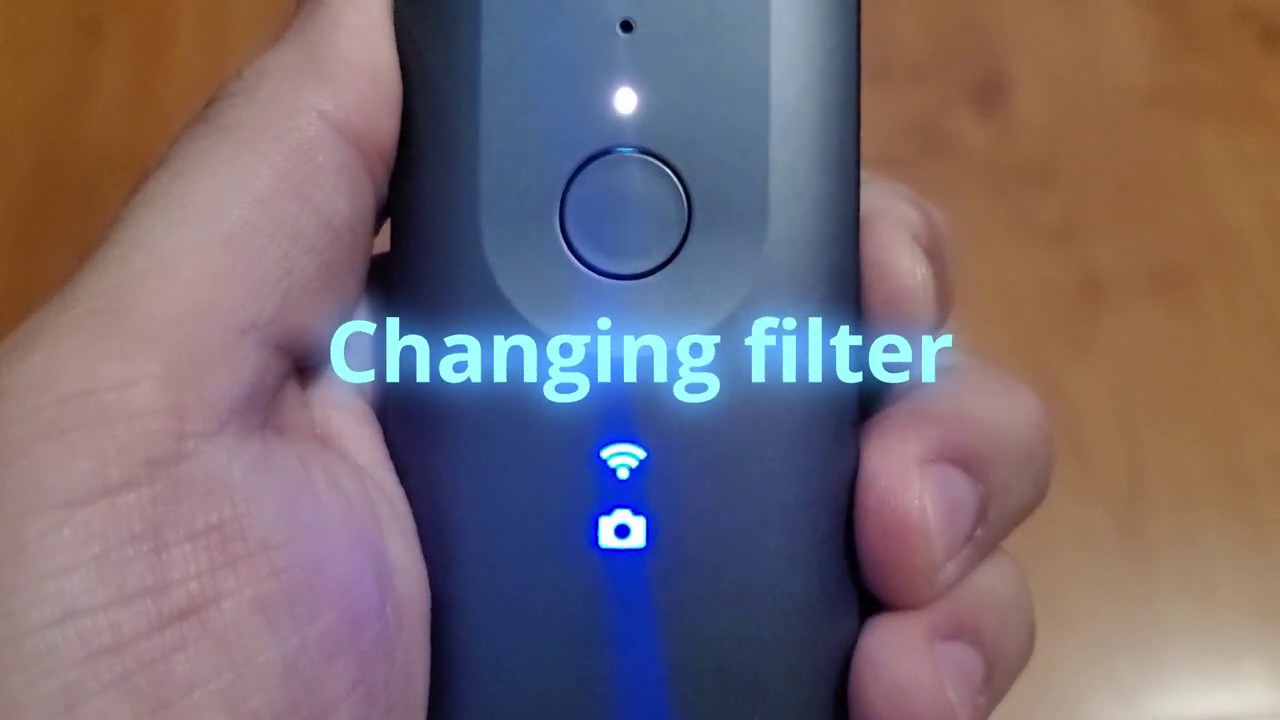

Once activated, we can select the desired filter using the “Mode” button, depending on the color that the Wi-Fi symbol has, it will be the effect that will be applied to the image.

  • Blue: Image Equalization (color).
  • Green: Image Binarization or Threshold (Red, Green and Blue).
  • Cyan: Grayscale.
  • Magenta: Blur.
  • Yellow: Erosion-Dilatation.
  • White: Negative.
  • Once the filter is selected, we only have to press the Shutter button to take the image and save it, the image will be saved in a folder called “Filtered Images”.

Note: when the filter is being applied the WiFi symbol will flash, until it stops blinking. Do not press any other button, this process takes 1 - 4 seconds depending on the filter.

Development:

The filters were made with the following code:

Image Equalization (color):

fileUrl = String.format("%s/%s_equalize.jpg", Constants.PLUGIN_DIRECTORY, dateTimeStr);
Mat rgbImage = new Mat(img.size(), img.type());
Imgproc.cvtColor(img, img, Imgproc.COLOR_RGB2YCrCb);
List<Mat> channels = new ArrayList<Mat>();
Core.split(img, channels);
Imgproc.equalizeHist(channels.get(0), channels.get(0));
Core.merge(channels, img);
Imgproc.cvtColor(img, img, Imgproc.COLOR_YCrCb2BGR);

Binarization of image or Threshold (Red, Green and Blue):

fileUrl = String.format("%s/%s_threshold.jpg", Constants.PLUGIN_DIRECTORY, dateTimeStr);
Mat rgbImage = new Mat(img.size(), img.type());
Imgproc.cvtColor(img, img, Imgproc.COLOR_RGB2YCrCb);
Imgproc.threshold(img, img, 127.0, 255.0, Imgproc.THRESH_BINARY);
Imgproc.cvtColor(img, img, Imgproc.COLOR_YCrCb2RGB);

Grayscale

fileUrl = String.format("%s/%s_gray.jpg", Constants.PLUGIN_DIRECTORY, dateTimeStr);
Imgproc.cvtColor(img, img, Imgproc.COLOR_RGB2GRAY);

Blur

fileUrl = String.format("%s/%s_blur.jpg", Constants.PLUGIN_DIRECTORY, dateTimeStr);
Imgproc.cvtColor(img, img, Imgproc.COLOR_RGB2BGR);
Imgproc.blur(img, img, new Size(25,25));

Erosion-Dialation

fileUrl = String.format("%s/%s_erodedilate.jpg", Constants.PLUGIN_DIRECTORY, dateTimeStr);
Imgproc.cvtColor(img, img, Imgproc.COLOR_RGB2GRAY);
Imgproc.threshold(img, img, 0, 255, Imgproc.THRESH_BINARY_INV+Imgproc.THRESH_OTSU);

Negative

fileUrl = String.format("%s/%s_negative.jpg", Constants.PLUGIN_DIRECTORY, dateTimeStr);
Core.bitwise_not(img,img);
