HowTo: Live Stream to Browser Direct from Camera with 330ms Latency

THETA API Usage
,
1

You can stream a live preview from the THETA X direct to a web browser.

How To

  1. connect laptop or mobile phone to camera with WiFi
  2. if in access point mode, go to http://192.168.1.1/getLivePreview

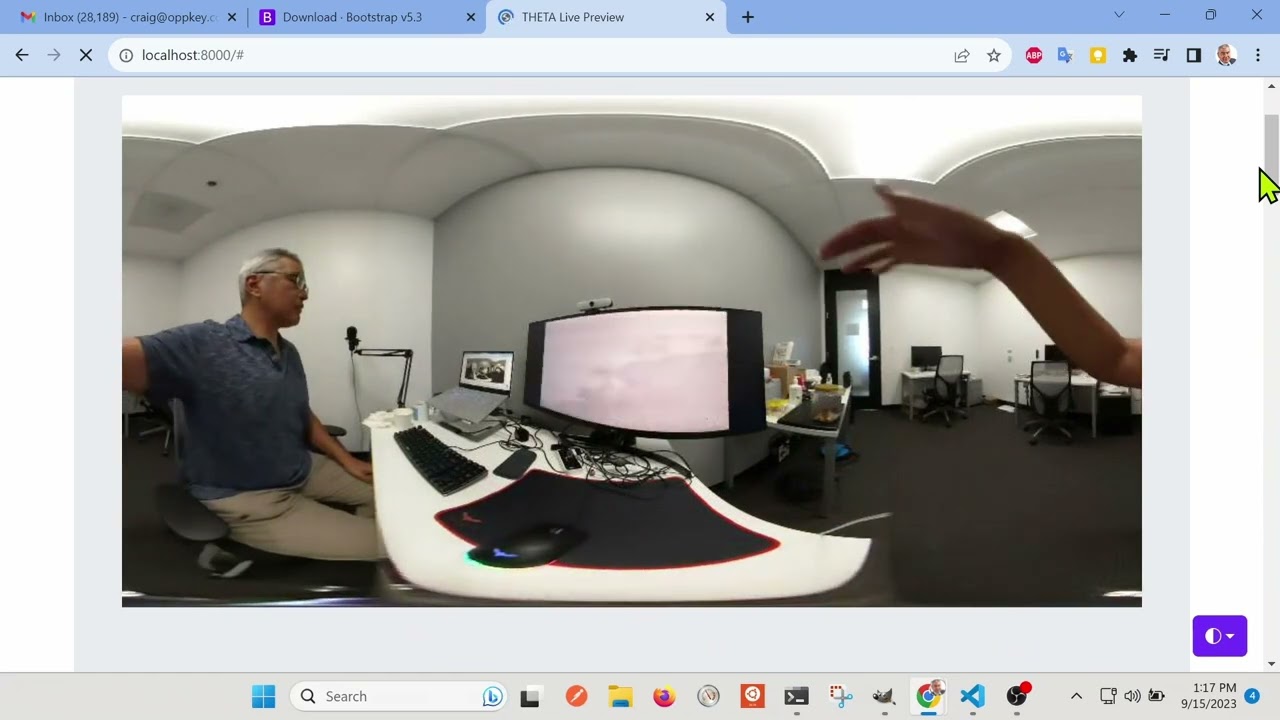

example using Google Chrome browser

image1145×820 123 KB

Alternative technique with live preview embedded in web page

image800×651 82.9 KB

snippet using bootstrap

<div class="col-lg-12 px-0">

  <iframe src ="http://192.168.1.1/getLivePreview" width="100%" height="600">
    </iframe>
</div>

Latency

image800×286 86.4 KB

310ms

image800×272 82.4 KB

362ms

image1936×654 117 KB

188ms

1 Like
2

Is it possible to do the same thing on Client mode?

3

On client mode, when visit device from browser, user name and password needed.
What is the default user name and password?

image656×530 30.4 KB

4

yes, I think it works for client mode.

The username is the serial number. YR1411xxxx
password is just the digits 1411xxxx

5

User name and password don’t work.
My Theta X is start from YR1410xxxx, does this mean it is an old version?
Tried to reset setting, no luck…

Firmware is 2.21.0
I can connect to it by AP mode, but not Client mode.

6

Hmm, maybe this technique doesn’t work to display the stream in the browser.

To use the client mode API, you must use digest authentication. You can’t put the username and password into the browser pop up box as it will use basic authentication.

see this thread.

I use insomnia to test the API. It is open source and free.

on the command line, curl will also work

7

Thanks for the webpage you linked, from that I figured the password should be THETAYR1410xxxx.
I can get live preview from CL mode now. Is there parameter, we can adjust resolution. For example:
http://192.168.20.213/getLivePreview?hd=true

8

sorry about my error with the username for client mode. I’m glad you were able to find out the username and password from the existing discussions. :slight_smile:

The preview format is set with the API.

The THETA X doesn’t have the 1920x960 format.

1 Like
