HowTo: Single Fisheye With THETA X - Control Front or Rear Lens

THETA API Usage
1

image794Ă—1418 93.9 KB

Image Size                      : 5504x5504

I just realized that the THETA X can take a single fisheye image at time.

This is a crop of the image.

image1384Ă—724 56.9 KB

example usage

{
    "name": "camera.setOptions",
    "parameters": {
        "options": {
            "fileFormat": {
				"height": 5504,
						"_mode": {
							"filter": "single",
							"lens": "front"
						},
				"type": "jpeg",
				"width": 5504
			}
	}
    }
}

curl --request POST \
  --url http://192.168.1.1/osc/commands/execute \
  --header 'Content-Type: application/json;charset=utf-8' \
  --data '{
    "name": "camera.setOptions",
    "parameters": {
        "options": {
            "fileFormat": {
							"height": 5504,
									"_mode": {
										"filter": "single",
										"lens": "front"
									},
							"type": "jpeg",
							"width": 5504
						}
				}
    }
}

available formats


{
	"height": 5504,
	"_mode": {
		"filter": "single",
		"lens": "front"
	},
	"type": "jpeg",
	"width": 5504
},
{
	"height": 5504,
	"_mode": {
		"filter": "single",
		"lens": "rear"
	},
	"type": "jpeg",
	"width": 5504
},
{
	"height": 2752,
	"_mode": {
		"filter": "single",
		"lens": "front"
	},
	"type": "jpeg",
	"width": 2752
},
{
	"height": 2752,
	"_mode": {
		"filter": "single",
		"lens": "rear"
	},
	"type": "jpeg",
	"width": 2752
}
1 Like
2

Hi Craig,
Thank you very much for sharing this information. I’m relatively unfamiliar with Ricoh development thing. But I currently need to use this camera to capture some fisheye photos. Could you please recommend any entry-level tutorials that can guide me through using the code you’ve provided here?

3

Do you have an Android phone you can use to connect to the THETA X?

4

Yes sir. At least I can get one Android from my friend.

5

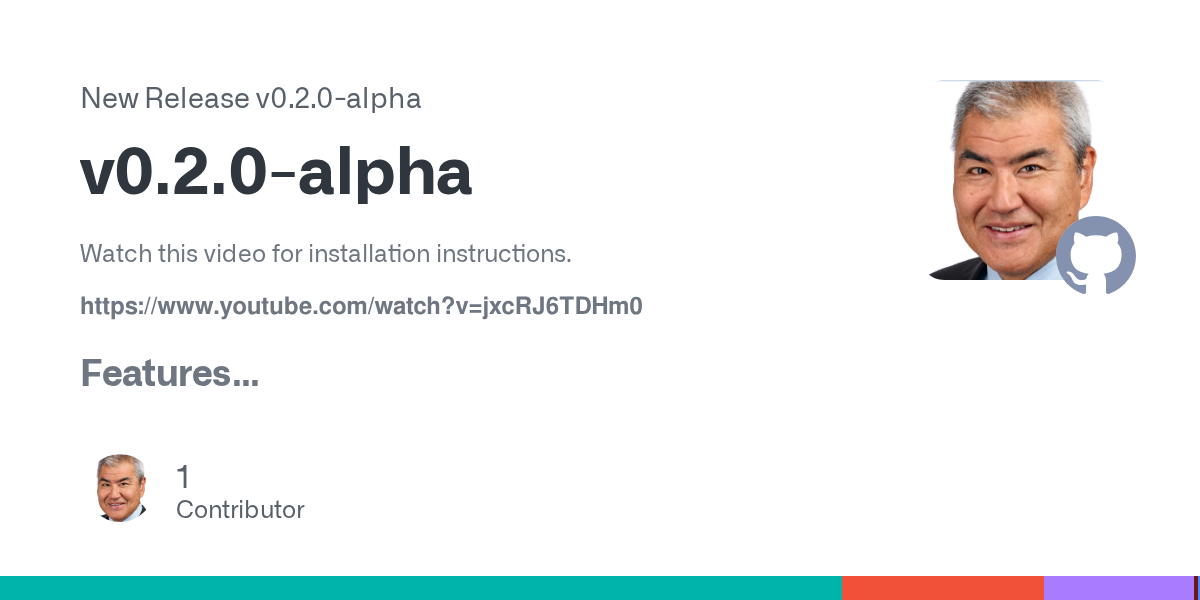

Watch this video

https://youtu.be/jxcRJ6TDHm0

app

image1062Ă—606 44.2 KB

image369Ă—805 42.5 KB


6

@craig This works smoothly for me. I’m using a Pixel 4 running Android 13. Using it with an X, running firmware 2.40.0.

I used the URL in Chrome to download the app to my Pixel 4. I got a warming message but did “install anyway.” No problem.

I run it. Choose the X from the bottom and get a screen with buttons (text only).

Here’s the output:

R0010102 1
R0010102 11920Ă—1920 260 KB

:hot_pepper: Thanks to a tip from @craig, I used the Image Capture app on my MacBook Air to transfer images over from my THETA to my laptop. Works great.

1 Like
7

Thank you for the tutorial! I’m using the Nokia 4.2 with a rather vintage Android 11. I successfully connected and completed the fisheye setting. However, after tapping “take picture,” I couldn’t find any photos in the file checker. Do I need to use any software to retrieve the data output?

Once again, thanks for your help! It truly saved my day!

Edit: I find all photos by connecting the camera with PC. Thanks very much now everything is good!

1 Like
8

oh, great news. If you connect the THETA X to your PC with a USB cable, you can see the single fisheye images, right? You may have to unplug and plug back in. Though, it seems like you figured it out. :slight_smile:

Great news before the weekend.

9

Friday Night Update!

features

  • single fisheye with separate control of front and rear lenses
  • 8K 5fps video (as of Feb 16, 2024, the camera menu does not have this)
  • auto-level disable and enable
  • image stitching enable and disable
  • image bitrate to adjust 11K image file size for web load speed
